Feedback module with 16 galvanic separated inputs for the RS-feedback bus as used by Lenz Digital plus!
Suitable for the feedback of 16 arbitrary contacts via the RS-feedback bus.

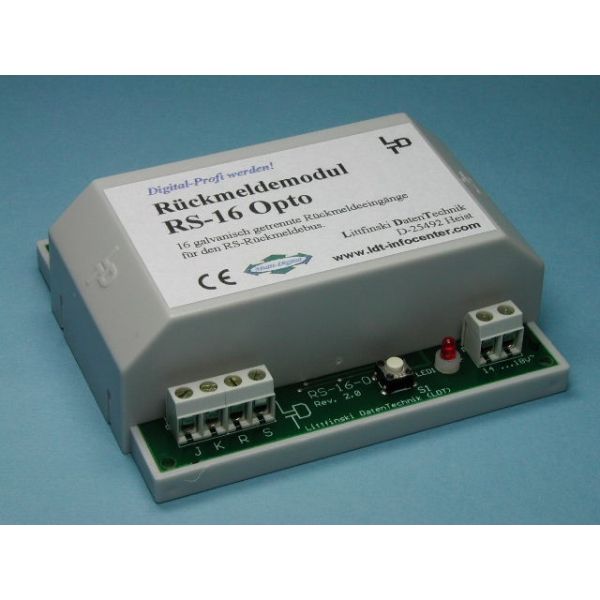

16-fold feedback module RS-16-O in a case.
Features of the RS-16-O
For the connection to the control units LZ100 or LZV100 of Lenz (up to 64 units).
The feedback modules RS-16-O can be combined with any other RS-feedback module (LR101, RS-8).
Easy and secure connection of the feedback contacts by screw clamps.
The RS-16-O is equipped with opto couplers and can therefore feedback any reed contacts, push button, relay contacts etc. with digital- or direct voltage.
It is suitable to use our turnout decoder S-DEC-4 for turnout feedback.
Available as ready to use finished module, as finished module in a case or as a kit. It is assembled on a 86x76mm sized pc-board with four bores for assembly purposes (suitable assembly material can be found under accessories).
Our feedback module RS-16-O from of the Digital Professional Series can be easily operated on your digital model railroad. It is 100% compatible to the RS-feedback bus.
The finished module and the finished module in a case comes with 24 month warranty.
Each feedback module RS-16-O will be supplied with a detailed operating-/respectively assembly-instruction. Those instructions can be found within the next section.
You can purchase the feedback module as a kit (-B), as tested finished module (-F) or as tested finished module in a case (-G).
