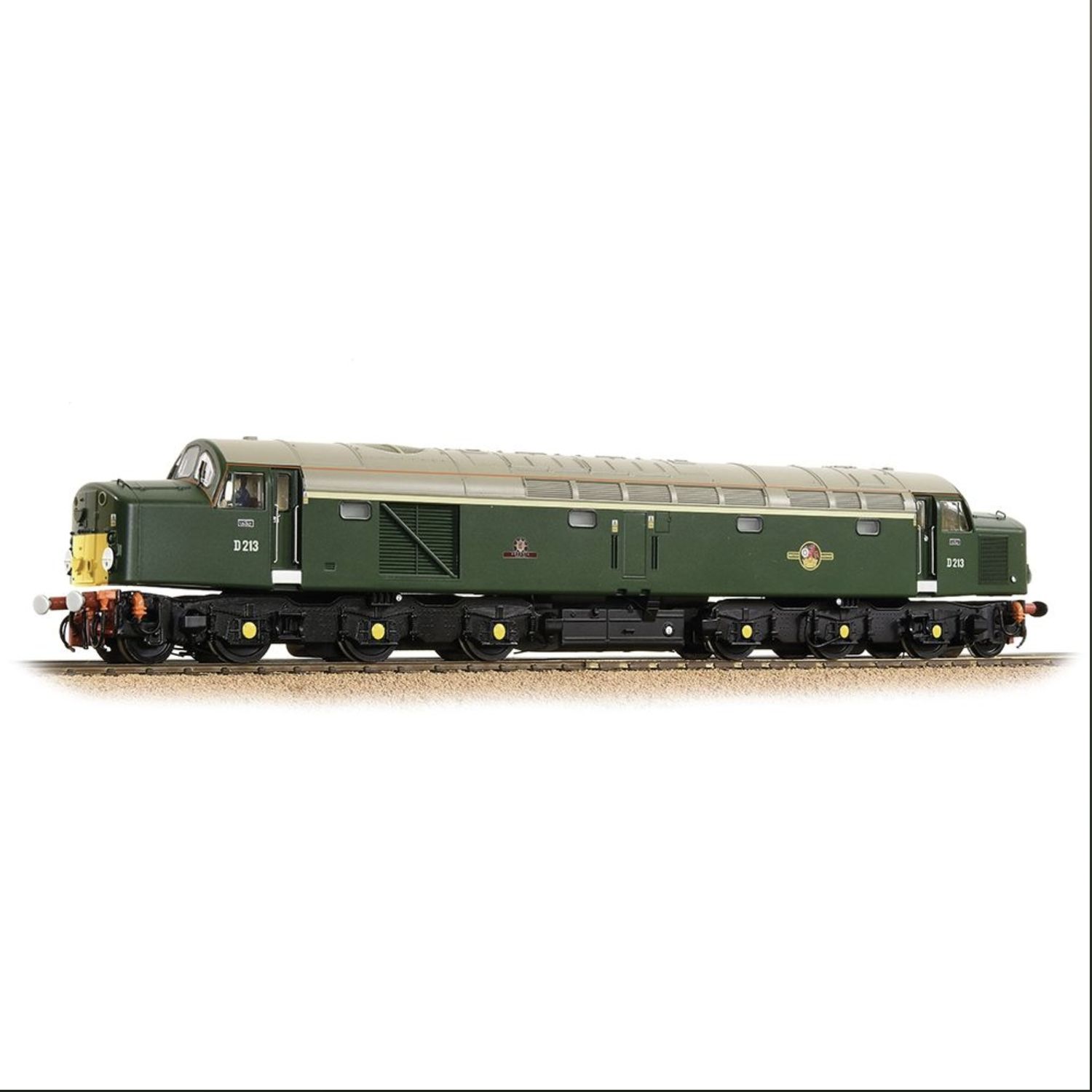

32-487 OO Gauge Class 40 Disc Headcode D213 'Andania' BR Green (Small Yellow Panels)

32-487 OO Gauge Class 40 Disc Headcode D213 'Andania' BR Green (Small Yellow Panels)

• Bachmann Branchline OO Scale
• Era 9
• Pristine BR Green (Small Yellow Ends) livery
• Running No. D213
• Named ‘Andania’
• Etched Nameplates included
• Equipped with a Plux22 DCC Decoder Socket – recommended Decoder item No. 36-570A
• Length 285mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Disc Headcodes (Discs supplied in the Accessory Pack)
• High Intensity Headlight
• Nose-Top Handrails
• Nose-Corner Handrails
• Stones Boiler Port on Roof (with optional blank supplied in the Accessory Pack)
• Cantrail Grilles Arranged as appropriate to a locomotive with a Stones Boiler
• Rectangular Boiler Access Panel
• Fitted with Multiple Working Equipment
• Fitted with Dual Brakes (Air Pipes fitted)

• Etched Frost Grilles (optional part supplied in the Accessory Pack)

BACHMANN BRANCHLINE CLASS 40 SPECIFICATION

MECHANISM:

• Five pole, twin shaft motor with two flywheels providing drive to both bogies
• Authentic 1Co-Co1 drive arrangement with six axle drive
• Electrical pickup from all twelve driving wheels
• Separate metal bearings fitted to each driven axle
• Gearing arranged for prototypical running speeds and haulage capabilities
• 16.5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
• NEM coupling pockets to NEM362 standards integrated into each bogie
• Designed to operate on curves of second radius (438mm) or greater

DETAILING:

• Bogies fitted with separate steps and sandboxes
• Rotating radiator fan (un-motorised)
• Separately applied metal detail parts, including grab handles, sand pipes and etched fan grilles
• Sprung buffers
• Pre-fitted driver in one cab
• Each model is pre-fitted with a full set of decorated, model-specific buffer beam pipework and accessory parts

LIGHTING:

• Directional lighting, including headlights and high intensity headlights where applicable, switchable on/off at either end on DCC or Analogue control
• Cab lighting*, assigned to two DCC functions for separate switching of each
• Authentic light colours and temperatures selected for each model based on era and application

DCC:

• Plux22 DCC decoder interface

SOUND:

• Two quality speakers employed for optimum sound reproduction, fitted to every model as standard
• ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Bachmann Branchline Class 40 using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence and running sounds are produced when power is applied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using BR and corporate specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
• In addition, where applicable Etched Nameplates and Plaques are also provided
