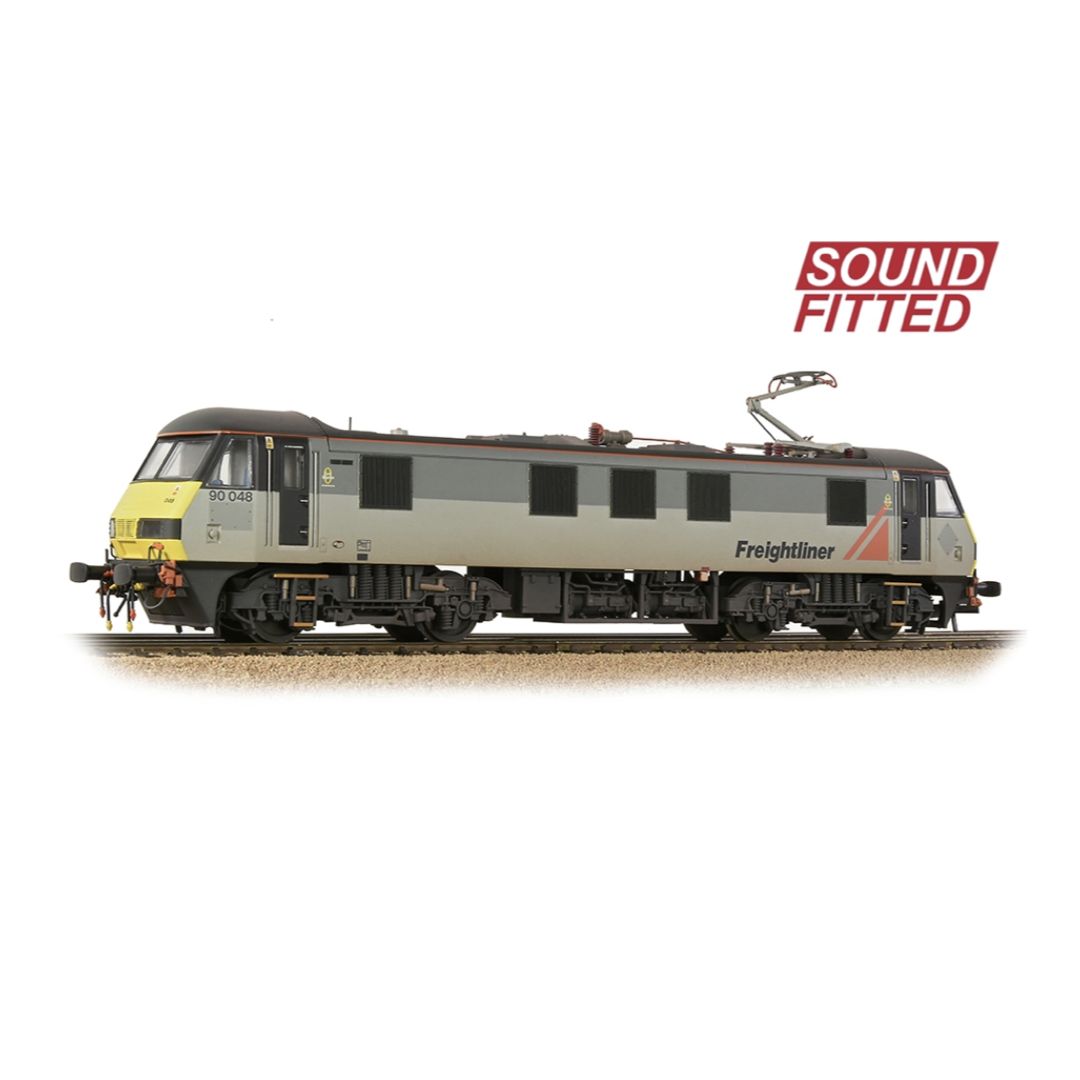

32-620SF OO Gauge 32-620SF Class 90 90048 Freightliner Grey (Sound Fitted and Weathered)

32-620SF O Gauge 32-620SF Class 90 90048 Freightliner Grey (Sound Fitted and Weathered)

Bachmann Branchline OO Scale

Era 9

Weathered Freightliner Grey livery

Running No. 90048

SOUND FITTED - Fitted with a ESU Loksound V5DDC Sound Decoder – See below for the function list

Length 250mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

Rectangular Freight Buffers

Screw link Couplings

TDM Cables fitted to the Buffer Sides

Original Slatted Horn Grille with Two Horns

Large Battery Charger

Battery Boxes and Switch with Hinged Access panels which are Ribbed

MECHANISM:

Five pole, twin shaft motor with two flywheels providing drive to both bogies

All axle drive

Electrical pickup from all wheels

Separate metal bearings fitted to each axle

Diecast metal chassis block

Gearing arranged for prototypical running speeds and haulage capabilities

5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing

Close coupling mechanism fitted at each end, each of which is fitted with coupling pockets to NEM362 standards

Designed to operate on curves of second radius (438mm) or greater

DETAILING:

Metal Pantograph, sprung for posing in the up or down position, or can be raised/lowered via the built-in servo motor when operated on DCC

Bogies constructed from multiple components featuring full relief detail

Separately applied metal detail parts, including horn grilles, roof grilles, lamp irons and aerials

Sprung buffers

Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts

LIGHTING:

Directional lighting, switchable on/off at either end on DCC or Analogue control

Day/Night Mode, selectable on DCC or Analogue control

Directional lights and Day/Night Mode selection is controlled via easy-access switches on the roof when operated on Analogue control

Cab lighting, switchable on/off (at the leading end, when used on DCC only)

Authentic light colours and temperatures selected for each model based on era and application

DCC:

21 Pin DCC decoder interface

Easy-access DCC decoder socket located underneath removable roof panel

SOUND:

Speaker installed in all models for optimum sound reproduction

ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED versions

Sound files produced specifically for the Bachmann Branchline Class 90 using recordings from real locomotives

SOUND FITTED models operate on DCC and Analogue control as supplied.

LIVERY APPLICATION:

Authentic liveries applied to all models

Multiple paint applications employed on each model using BR/TOC specification colours

Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours

SOUNDS

F0 - Directional Lights - On/Off (plus Light Switch Sound)

F1 - Sound - On/Off (plus Battery Switch and Compressor Sounds)

F2 - Brake

F3 - Low Horn (Playable)

F4 - Two-Tone Horn

F5 - Parking Brake On/Off (Loco won’t move with Parking Brake On)

F6 - On - Pantograph Up / Off - Pantograph Down (with Sounds)

F7 - Flange Squeal (Speed Related)

F8 - Windscreen Wipers

F9 - Air Dump

F10 - On - Guard’s Whistle / Off - Driver’s Response

F11 - Spirax Valve

F12 - On - Pantograph Up (Sounds Only) / Off - Pantograph Down (Sounds Only)

F13 - AWS

F14 - Directional Lights - On - Day Mode / Off - Night Mode

F15 - Cab Lights - On/Off (Direction Dependent)

F16 - Coupling Up

F17 - Uncoupling

F18 - On - Cab Door Open / Off - Cab Door Shut

F19 - Uncoupling Movement Cycle

F20 - Directional Lights Off (Non-Pantograph End)

F21 - Directional Lights Off (Pantograph End)

F22 - Fire Alarm Test

F23 - Volume Control (6 levels)

Analogue Users: Please note that any automated drive sounds will be played when this model is used on analogue control (DC) straight from the box!
