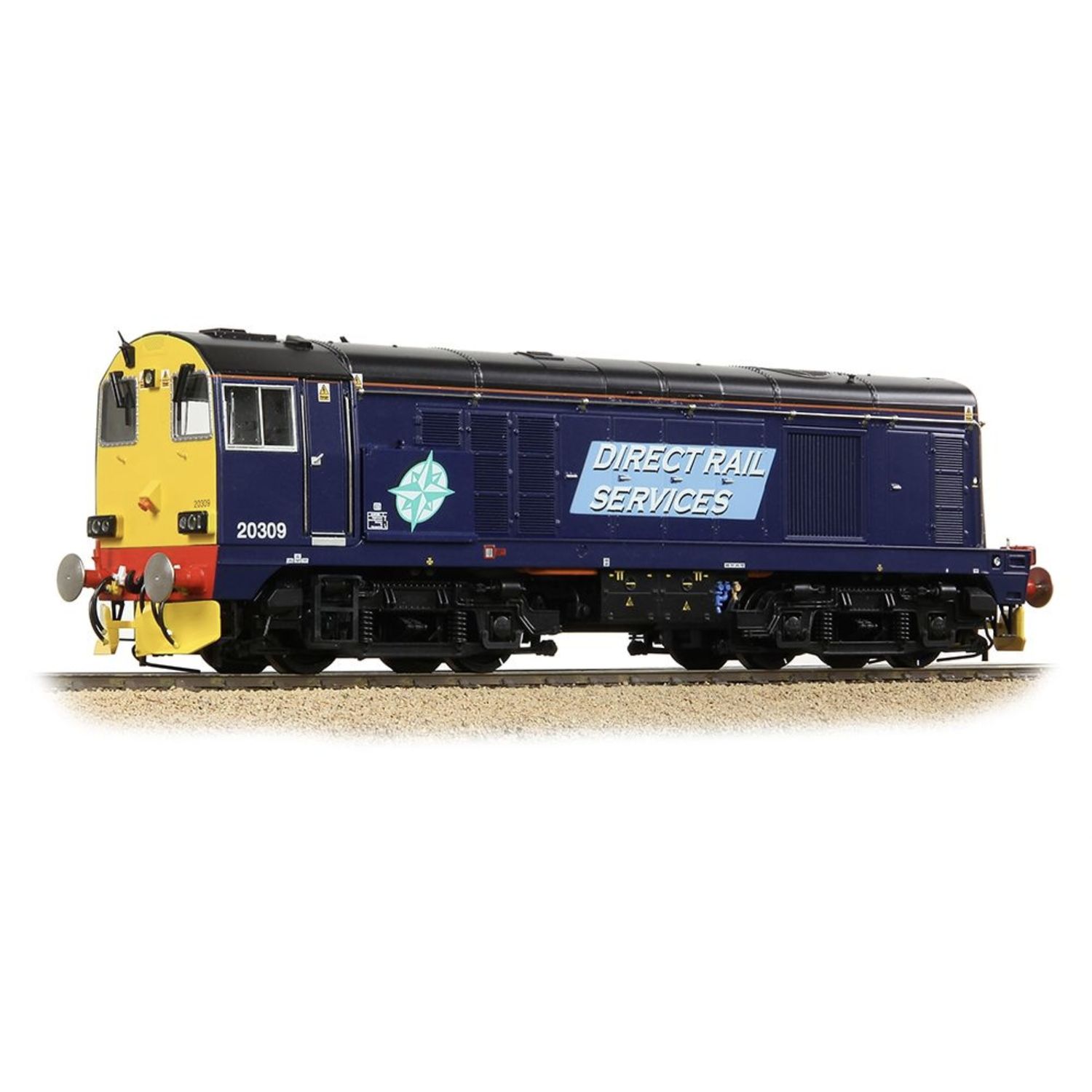

35-127A OO Gauge Class 20/3 20309 DRS Compass (Original)

35-127A OO Gauge Class 20/3 20309 DRS Compass (Original)

This latest generation Bo-Bo diesel locomotive from Bachmann Branchline brings the classic BR Class 20 right up to date, capturing the subtle lines of these distinctive locomotives whilst sporting the modern look of the Class 20/3s – which had their ends made flush during refurbishment and fitted with Wipac light clusters and multiple working connectors. The high level of detail is brought to life by the intricate livery application, whilst the powerful drive mechanism, Plux22 DCC interface and a full suite of lighting offers the perfect complement to the model’s good looks.

Bachmann Branchline OO Scale

Era 9

Pristine DRS Compass (Original) livery

Running No. 20309

Equipped with a Plux22 DCC Decoder Socket – recommended Decoder item No. 36-570B

Length 190mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

GPS Aerial

Bonnet Roof Aerial

One-piece Radiator Shutters

Early Fluted Bogie Equalising Beams

Blanked Speedo Drive

BACHMANN BRANCHLINE CLASS 20 SPECIFICATION

MECHANISM:

Five pole, twin shaft motor with two flywheels providing drive to both bogies

All axle drive

Electrical pickup from all wheels

Separate metal bearings fitted to each axle

Diecast metal chassis block and bogie towers

Diecast metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities

5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing

Detachable coupling pockets to NEM362 standards fitted to each bogie

Designed to operate on curves of second radius (438mm) or greater

DETAILING:

Bogies constructed from multiple components featuring full relief detail

Rotating radiator fan (un-motorised)

Separately applied metal detail parts, including handrails, grab handles, sand pipes and etched fan grilles

Sprung metal buffers

Body-mounted snow ploughs supplied with each model

Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts

LIGHTING:

Directional lighting, switchable on/off at either end on DCC or Analogue control

Day/Night Mode, selectable on DCC or Analogue control

Cab lighting, switchable on/off on DCC or Analogue control

Authentic light colours and temperatures selected for each model based on era and application

DCC:

Plux22 DCC decoder interface

SOUND:

Speaker installed in all models for optimum sound reproduction

Zimo MS450P22 DCC Sound Decoder fitted to SOUND FITTED versions

Sound files produced specifically for the Bachmann Branchline Class 20 using recordings from real locomotives

SOUND FITTED models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence and running sounds are produced when power is applied

LIVERY APPLICATION:

Authentic liveries applied to all models

Multiple paint applications employed on each model using BR and corporate specification colours

Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours

In addition, where applicable Etched Nameplates and Plaques are also provided
