371-790SF N Gauge Class 90/0 90042 Freightliner 'PowerHaul' Sound Fitted

371-790SF N Gauge Class 90/0 90042 Freightliner 'PowerHaul'

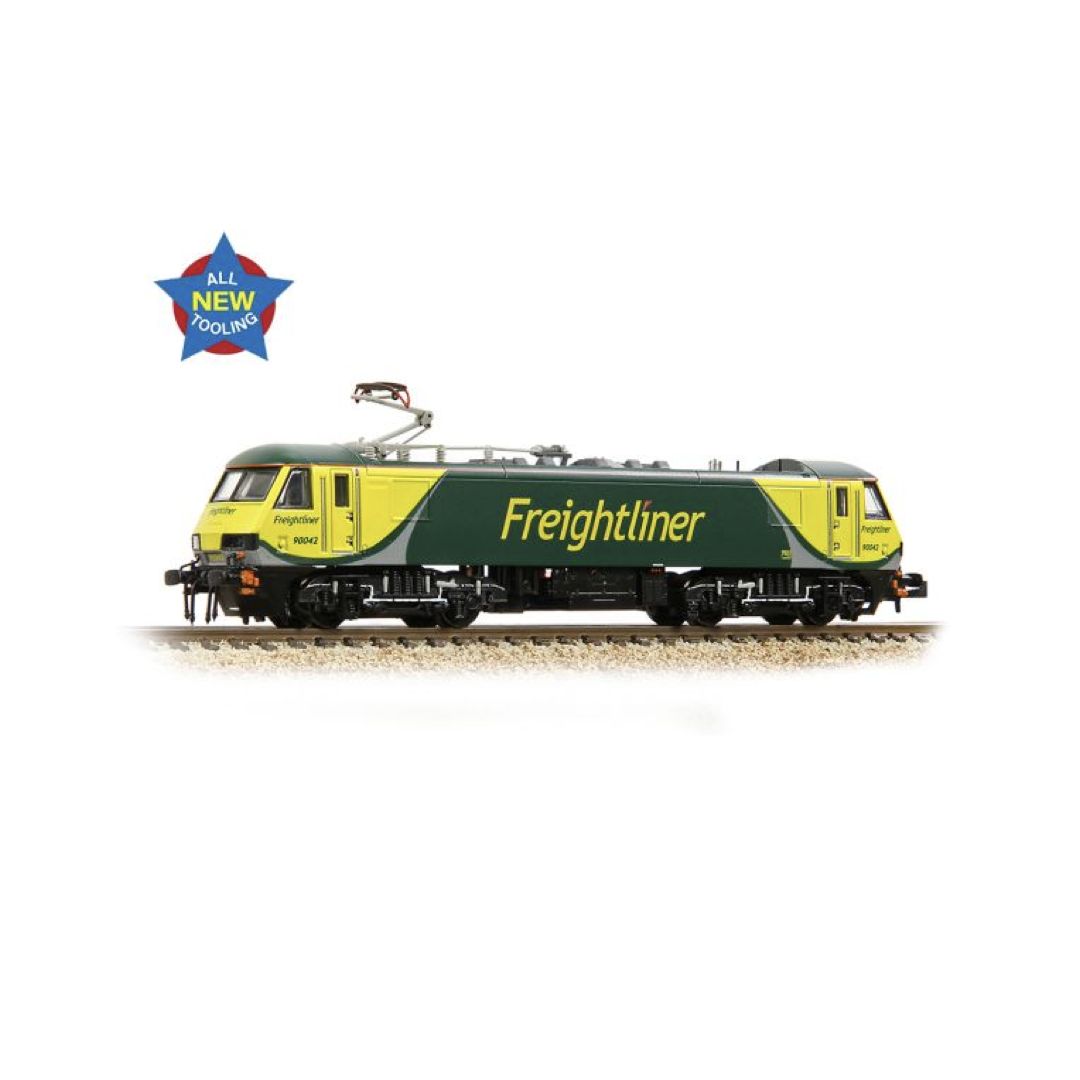

The Class 90 has been a mainstay of the British Rail electric locomotive fleet since the first examples were introduced in the late-1980s, and these popular locomotives are brought to life in N scale thanks to this all-new Graham Farish model. Still used by several operators today including Freightliner, this example depicts No. 90042 in the company’s ‘Powerhaul’ livery and comes complete with SOUND FITTED.

The new Class 90 is a revelation for the Graham Farish range, marking the dawn of a new era for N scale Electric Locomotives. Combining a highly accurate and detailed body shell with an authentic chassis and bogies, plus a fine reproduction of the Brecknell Willis high-speed Pantograph – the Graham Farish Class 90 captures the distinctive shape and character of the real locomotives to a tee. Add to this the impressive technical specification which includes a coreless motor with twin flywheels, all wheel drive and all wheel pickup, plus directional lights and, when used on DCC, cab lights too, and it’s easy to see why this model is the complete package. Suitable for use on DCC or analogue control straight out of the box, this SOUND FITTED model will take your enjoyment to the next level with its authentic sound effects which only enhance the model’s good looks!



Graham Farish N Scale

Era 9

Pristine Freightliner ‘Powerhaul’ livery

Running No. 90042

SOUND FITTED - Fitted with a ESU Loksound V5DDC Sound Decoder – See below for the function list

Length 126mm



DETAIL VARIATIONS SPECIFIC TO THIS MODEL

Rectangular Freight Buffers

Screw link Couplings

TDM Cables fitted to the Buffer Sides

Large Battery Charger

Battery Boxes and Switch with Hinged Access Panels which are Ribbed



GRAHAM FARISH CLASS 90 SPECIFICATION

MECHANISM:

Coreless, twin shaft motor with two flywheels providing drive to both bogies

All axle drive

Electrical pickup from all wheels

Separate metal bearings fitted to each axle

Diecast metal chassis block

Gearing arranged for prototypical running speeds and haulage capabilities

9mm (N gauge) wheels to NEM310 standards with authentic profile and detailing

Close coupling mechanism fitted at each end, each of which is fitted with coupling pockets to NEM355 standards

Designed to operate on curves of second radius (263.5mm) or greater

DETAILING:

Finely detailed Pantograph which is poseable

Bogies constructed from multiple components featuring full relief detail

Separately applied underframe and roof detail components

Detailed Cab Interior

Each model supplied with a full set of model-specific bufferbeam pipework and accessory parts

LIGHTING:

Directional lighting, switchable on/off at either end on DCC or Analogue control

Cab lighting, switchable on/off (when used on DCC only)

Authentic light colours and temperatures selected for each model based on era and application

DCC:

Next18 DCC decoder interface

SOUND:

Speaker installed in all models for optimum sound reproduction

ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED versions

Sound files produced specifically for the Graham Farish Class 90 using recordings from real locomotives

SOUND FITTED models operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

Authentic liveries applied to all models

Multiple paint applications employed on each model using BR/TOC specification colours

Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours

 SOUNDS

F0 - Directional Lights - On/Off (plus Light Switch Sound)

F1 - Sound - On/Off (plus Battery Switch and Compressor Sounds)

F2 - Brake

F3 - Low Horn (Playable)

F4 - Two-Tone Horn

F5 - Parking Brake On/Off (Loco won’t move with Parking Brake On)

F6 - On - Pantograph Up / Off - Pantograph Down (Sounds only)

F7 - Flange Squeal (Speed Related)

F8 - Windscreen Wipers

F9 - Air Dump

F10 - On - Guard’s Whistle / Off - Driver’s Response

F11 - Spirax Valve

F12 - Station Announcement

F13 - AWS

F14 - Cab Light (non-Pantograph End) On/Off (plus Light Switch Sound)

F15 - Cab Light (Pantograph End) On/Off (plus Light Switch Sound)

F16 - Coupling Up

F17 - Uncoupling

F18 - On - Cab Door Open / Off - Cab Door Shut

F19 - Uncoupling Movement Cycle

F20 - Directional Lights Off (Non-Pantograph End) (plus Light Switch Sound)

F21 - Directional Lights Off (Pantograph End) (plus Light Switch Sound)

F22 - Fire Alarm Test

F23 - Volume Control (6 levels)

Analogue Users: Please note that any automated drive sounds will be played when this model is used on analogue control (DC) straight from the box!
