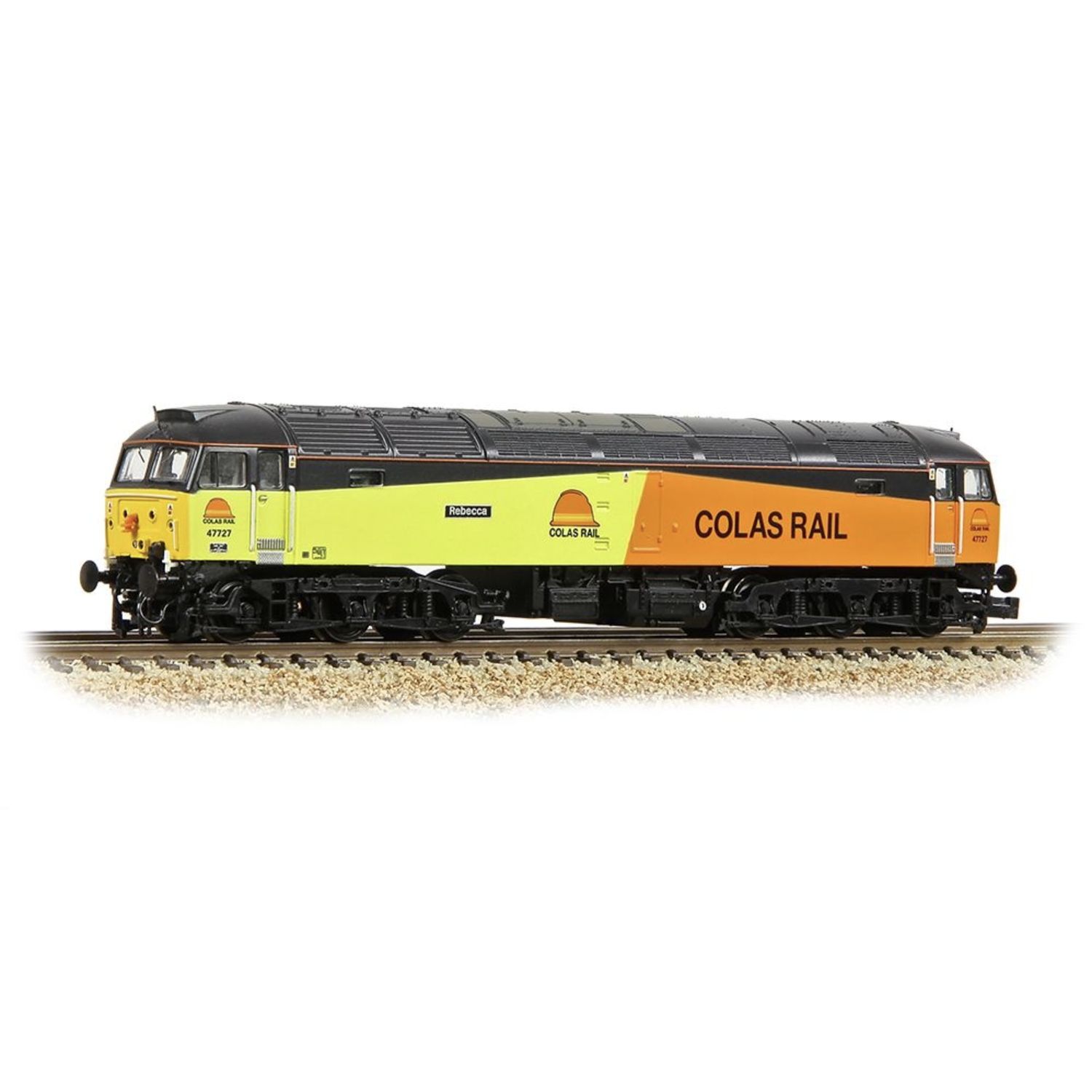

372-261 N Gauge Class 47/7 47727 'Rebecca' Colas Rail

372-261 N Gauge Class 47/7 47727 'Rebecca' Colas Rail

Graham Farish N Scale

Era 9

Pristine Colas Rail livery

Running No. 47727

Named ‘Rebecca’

Equipped with a Next18 DCC Decoder Socket – Recommend Decoder item No. 36-567B

Length 130mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

Plated Headcode Panels with Sealed Beam Marker Lights

Cut-Cab Locomotive

Cab-Front-mounted ETH Equipment

Multiple Operation Jumper Sockets

Single Arm Windscreen Wipers

High Intensity Headlight

Round Buffers

Checker Plate Kickplate below Cab Door

Partially Plated Cab Roof Vents

Serck Radiator Grilles

Smooth Exhaust Panels

Plated Roof Boiler Port

Water Tanks Removed

Later Extended Range Fuel Tanks

NRN Aerials

Plated Bogie-mounted Cab Steps

GRAHAM FARISH CLASS 47 SPECIFICATION

MECHANISM:

Coreless, twin shaft motor with two flywheels providing drive to both bogies

All axle drive

Electrical pickup from eight wheels

Diecast metal chassis block

Gearing arranged for prototypical running speeds and haulage capabilities

9mm (N gauge) wheels to NEM310 standards with authentic profile and detailing

Bogie-mounted coupling pockets to NEM355 standards at each end

Designed to operate on curves of second radius (263.5mm) or greater

DETAILING:

Bogies constructed from multiple components featuring full relief detail

Separately applied detail parts, including lamp irons, cab handrails and roof aerial (where applicable)

Separately fitted battery box/water/fuel tank assembly

Cab Interior Detailing

Each model supplied with a full set of model-specific bufferbeam pipework and accessory parts

LIGHTING:

Directional lighting, switchable on/off at either end on DCC or Analogue control

Cab lighting, switchable on/off (when used on DCC only)

Authentic light colours and temperatures selected for each model based on era and application

DCC:

Next18 DCC decoder interface

SOUND:

Speaker installed in all models for optimum sound reproduction

ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED versions

Sound files produced specifically for the Graham Farish Class 47 using recordings from real locomotives

SOUND FITTED models operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

Authentic liveries applied to all models

Multiple paint applications employed on each model using BR/TOC specification colours

Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
