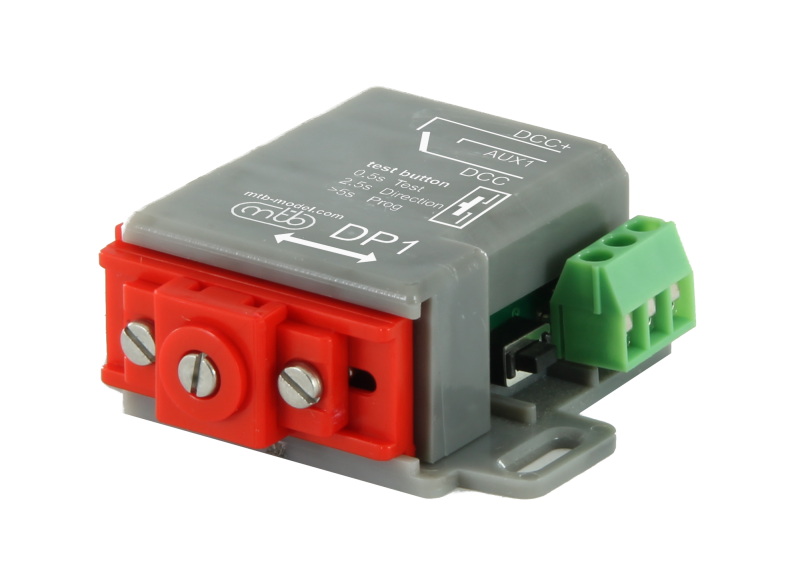

MTB DP1 Digital Point motor

• Integrated DCC decoder, favourable price
• Dimensions and mechanical function identical to MP1
• 4 stroke levels 3, 6, 9 mm
• 1x independent switching contact
• Quick setup by push button

MTB NEW Digital point motor.

DP1 switches are equipped with a DCC interface that ensures the reception of digital commands and at the same time power supply for the switch. For powering the switches, 1x auxiliary contact is provided, which supplies the DCC signal to the frog. The indicator LED is used for signaling the states, and an auxiliary button is used for configuration and testing.

DPx are designed for easy installation and control of switches via DCC, without the need to purchase, assemble and configure separate DCC decoder accessories.

The MTB DP1 Point Motor offers a range of features tailored to streamline the setup and operation of model railway switches:

1. Built-in DCC Decoder: The motor comes equipped with a DCC decoder, eliminating the need for separate decoders and simplifying the wiring and setup process.
2. Identical Dimensions and Mechanical Function: With dimensions and mechanical functions identical to the MP1, it ensures compatibility and ease of integration into existing setups without requiring significant modifications.
3. 4-Position Distance Control: The motor provides four position distance control options, allowing for precise adjustment at 3mm, 6mm, and 9mm,  distances.
4. Quick and Simple Setup: Setup and configuration are made easy with the configuration button, enabling users to quickly configure settings and test functionality without the need for complex procedures or additional tools.
Overall, the MTB DP1 Point Motor offers a user-friendly solution with advanced features designed to enhance the control and operation of model railway switches.
