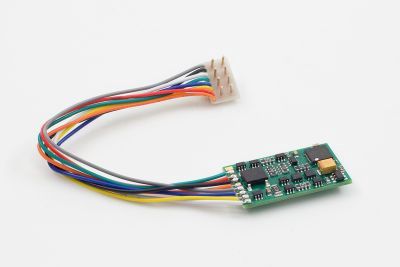

10231-02 LENZ STANDARD+ V2 8 pin decoder

The DIGITAL plus STANDARD locomotive decoder is suitable for all DC
locomotives with continuous current draw of 1.0 Amp.or less.

The characteristics of the decoder are:

• Super smooth and silent high frequency back-emf motor control.
• Adjustable precision stopping control
• Shunting Speed on F3
• Selectable for operation with 14/27, or 28/128 speed steps.
• Operation on conventional DC layouts is possible or can be disabled.
• Motor output = 1A continuous, 1.8A max,.
• Motor and function outputs protected
• Four function outputs rated at 150mA each with advanced function mapping
• Function outputs can be set to a timer for electronic uncoupling
• Directional or independent lighting with dimming and special effects.
• Support for Multiple traction and long addresses (Loco addresses up to 9,999)
• Support for programming on the mainline (Programming on Main POM)
• Support for all forms of programming as described in NMRA RP-9.2.3
• ABC Braking
• RailCom
• Size: L 25mm x W 15mm x H 3.8mm
