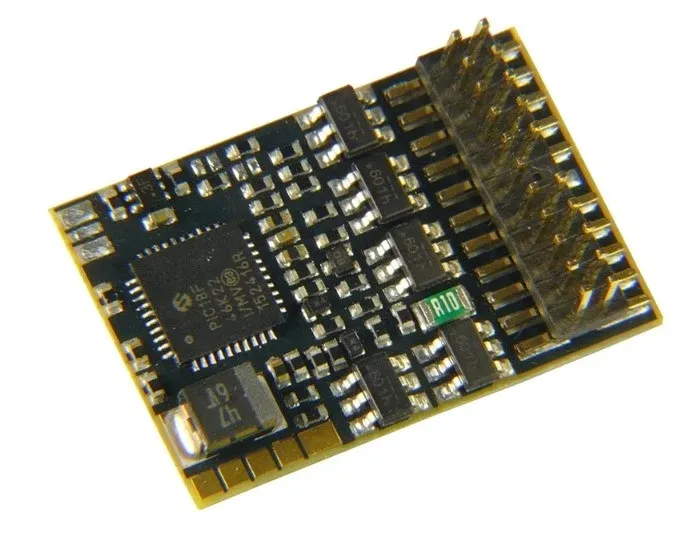

Bachmann Bachmann 36-570A Plux22 DCC Loco-Decoder (with Brake Button function)
£28.29
In stock: 10 available
Product details
Brand: Bachmann
A Plux22 (NEM658) DCC Decoder suitable for models fitted with a Plux22 DCC decoder socket.
Highlights include:
- Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
- 11 function outputs (9 powered and 2 logic level)
- 1.2A continuous load
- Suitable for models equipped with DC motors (including coreless motors)
- Brake Button function for realistic control of braking (operates on F2)
Operating Modes
- Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function
- 14, 28 and 128 speed steps
- Short and Long addresses
Motor Control Features
- Suitable for models equipped with DC motors (including coreless motors)
- 1.2A continuous load
- Variable pulse width frequency motor regulation (up to 40kHz)
- Motor output overload protection; Back EMF (de-selectable)
Function Outputs
- 9 powered-function outputs with overload protection
- 800mA load per output
- 800mA total load of all function outputs
- 2 additional logic level outputs
- Shunting speed and momentum key selectable
Dimensions
22mm x 15mm x 3.5mm
Default Address
- Address 3
Programming
- DCC Service Mode & DCC PoM (Programming on Main)
Additional Features
- RailCom® Feedback system
- Capacitor connections
- Upgradable firmware
Bachmann Bachmann 36-570A Plux22 DCC Loco-Decoder (with Brake Button function)
