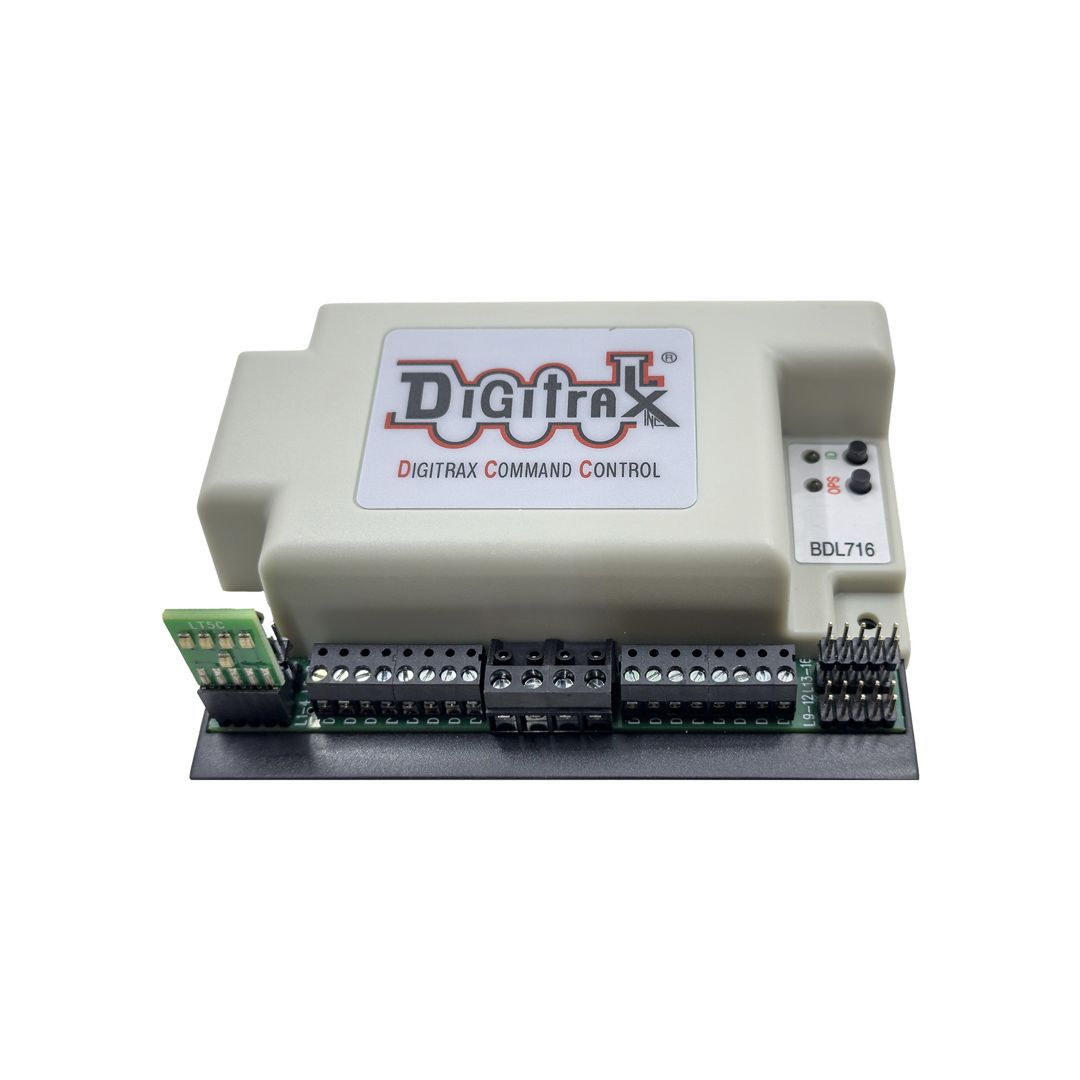

Digitrax BDL716 Block Detector

All plug-in connectors for simple and easy installation and service.

User defined as 16 DS reporting addresses in 1 to 2000+ DS range.

Easy setup with device Option Switches (OPSW)

Powered by 2mm DC jack, 8V min to 22V max.

Configured to operate with DCC booster power from; DCS52,
DCS100, DCS210, DCS210+, DCS240, DCS240+ Command Stations,
DB210 and DB220 boosters.

Can split into two 8-DS areas to operate from two separate boosters.

Optional Detection and Power status led connector for remote state
indication, compatible with e.g. LT5C.
