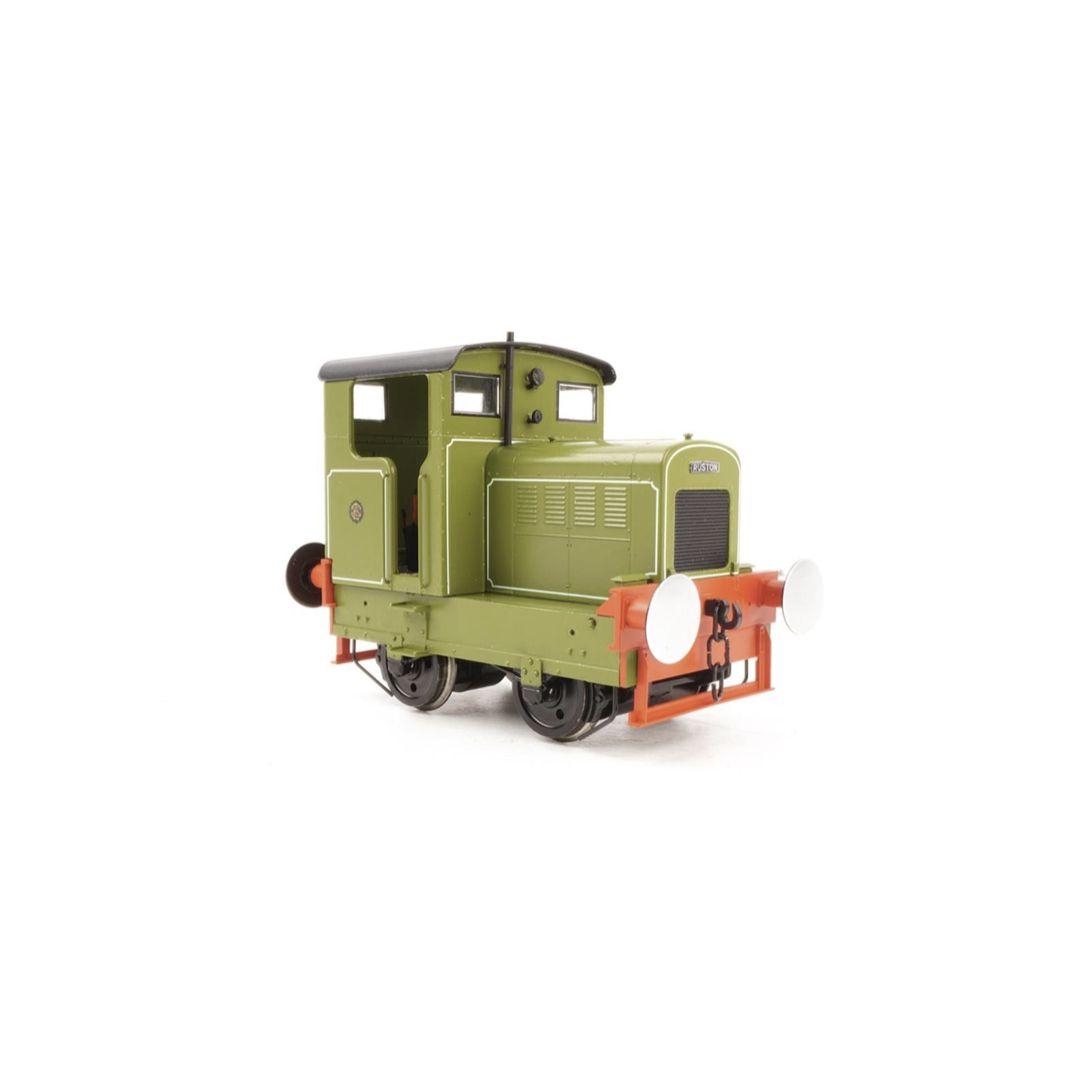

Digitrains Ruston 48DS Protodrive.
Use F2 as a brake key to stop quicker.
Set CV164 to 1 for Electric Start, CV164 to 0 for Air Start (Default).
With Air Start selected, turn F5 on before F1 to activate the cold start sequence. The Donkey Engine will play to build
up air pressure. Turn F5 to stop the Donkey Engine. Press F5 again to fire the engine. The engine will start and enter
a hunting idle. Turn F5 off again for the engine idle to settle down.
With Electric Start selected, turn on F5 before F1 to activate the cold start. The engine will crank and fire then go into
a hunting idle. Turn F5 off for the engine to settle down.
Key Function Sound slots Volume CVs Volume values
F0 Headlights 20 411 16
F1 Sound On 1, 3, 6, 18 259, 275, 299, 395 192, 128, 80, 144
F2 Brake Key 4 283 96
F3 Playable Horn 7 307 160
F4 Toot Horn 8 315 160
F5 Cold Start/ Low Gear Only
F6 Engine Idle
F7 Drive Hold
F8 Engine Revs Build Up
F9 Flange Squeal 17 387 144
F10 Cab Light 21 419 16
F11 Guard's Whistle 19 403 112
F12 Cab Door Open/ Close 5 291 128
F13 Disable Wagons Clattering
F14 Light Engine
F15 Coupling Clank 12 347 128
F16 Buffer Up 11 339 96
F17 Longer Klaxon 10 331 96
F18 Short Klaxon
9 323 96
F19 Fade out sound
F20 Shunt Mode
F21 'Buffer Up' 15 371 96
F22 'Take Up the Slack' 16 379 96
F23 '6ft, 4ft, Woah!' 14 363 96
F24 Not in use
F25 Not in use
F26 Not in use
F27 Not in use
F28 Volume control
