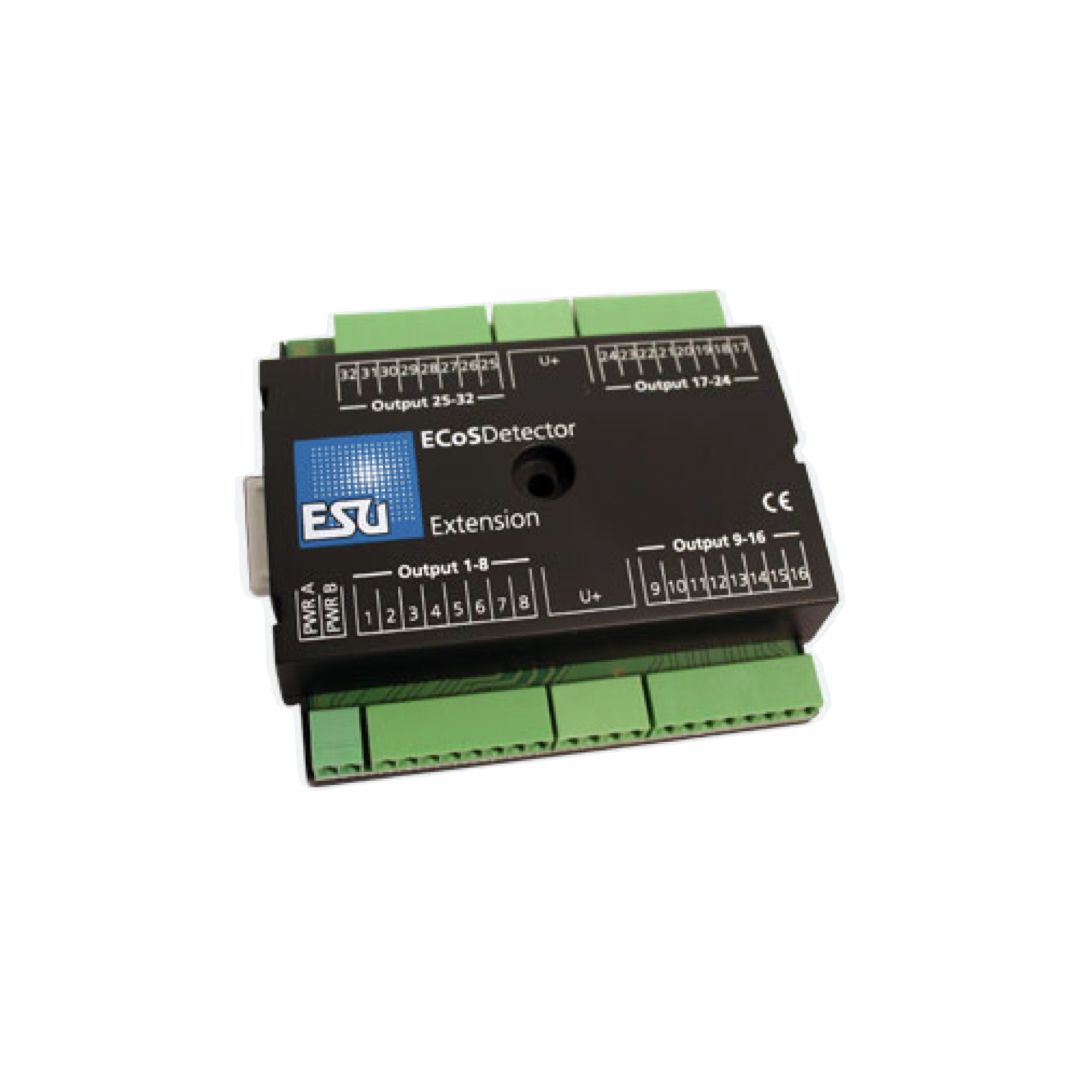

ESU 50095 ECoS Detector Extension Unit

50095 ESU ECoS Detector Extension Unit.

If required, each ECoSDetector can be supplemented by a ECoSDetector Extension module, which can be easily connected to the ECoSDetector. Every ECoSDetector Extension module offers 32 transistor outputs.

Each one of the 32 outputs provides current up to 100mA max. Since these outputs are conducted as "open collectors", you are able to connect either small light bulbs or LEDs with current limiting resistor directly to it. The total current of all outputs must not exceed 1.5A! Any DC or AC transformer (15V - 19V) can be used for supply.
