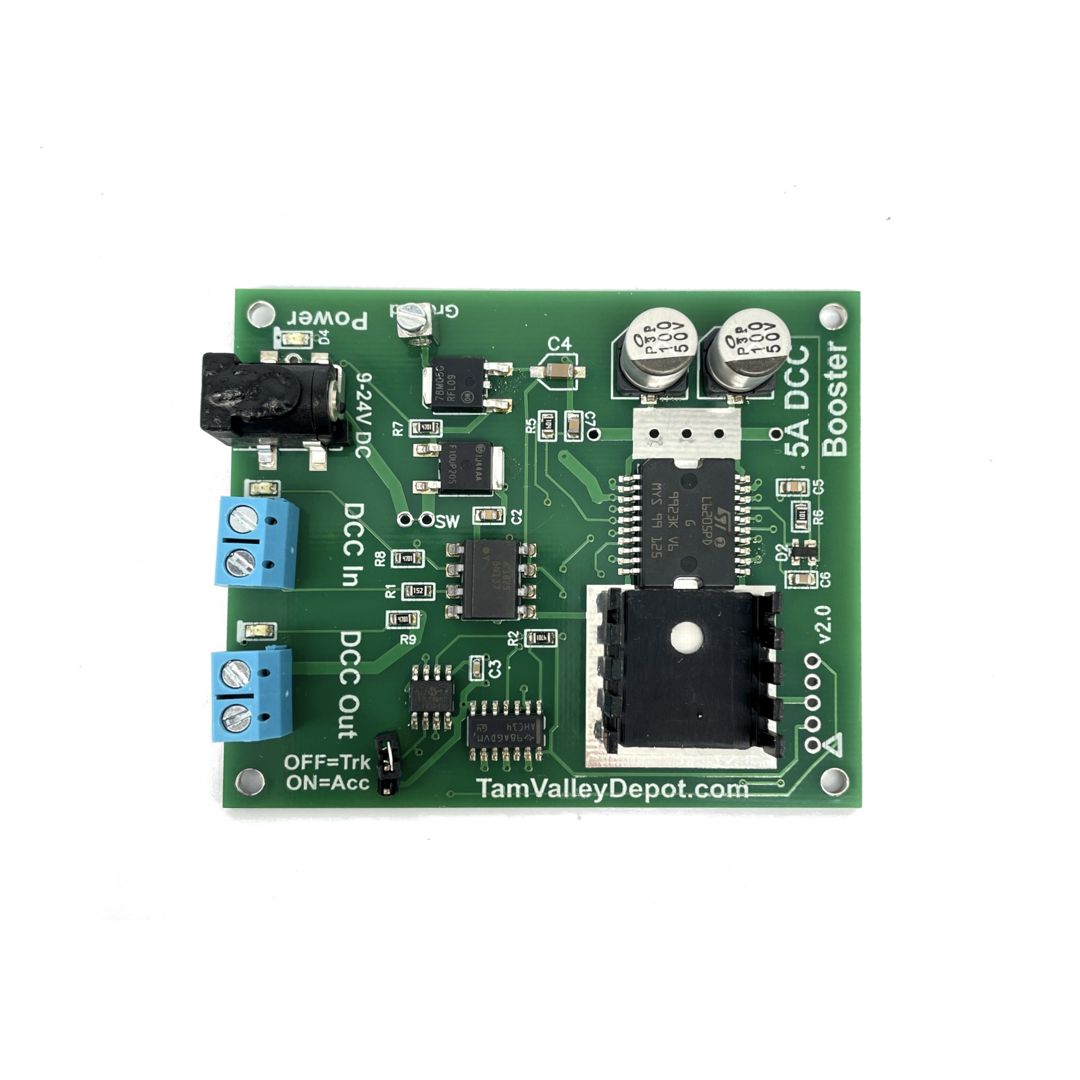

Tam Valley Depot DAB002 DCC 5 Amp Booster (Universal)

These boards can be used to make locomotive Power Districts or an Accessory District with a shared power supply.

A separate power supply is required and we recommend: TRDAB16 for Power Districts. 16V DC @ 4.5 Amps TRDAB12 for an accessory bus. 12V DC @ 5 Amps

A jumper is used to set either Accessory Mode or Power District Mode.

Each board can supply up to 3 Amps continuous duty and 5 Amp peak with a suitable power supply.

These boards work very nicely with the Hex Frog Juicer.

Max power input voltage: 40V

Power Connector: 5.5 mm (outer)/ 2.1 mm (inner) barrel plug, center positive

DCC input: optically isolated, 5-24 Volts

DCC Connectors: Screw blocks

Max output: 5 Amps for short periods, 3 Amps continuous

Short Trip Point: 5.6 Amps Short Trip Off Time: 1 microsecond

Short Trip Recovery Time: 200 microseconds

No Auto-reverse

Board Size: 3" x 2.5" (76mm x 64 mm)
