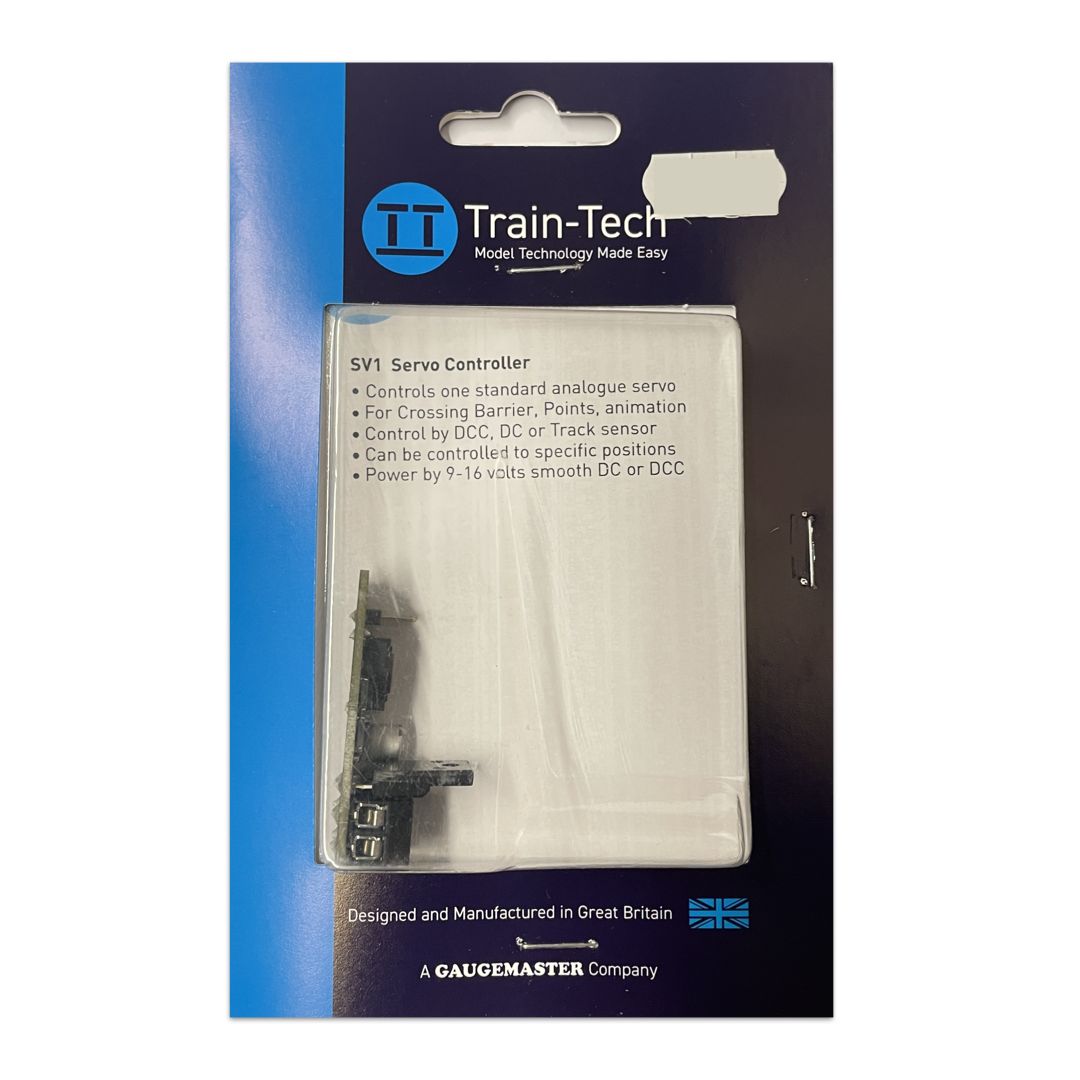

Train Tech SV1 Servo Controller for DC/DCC Systems

Servo Controller for DC/DCC Systems

Details

The Servo controller connects directly to most low power analogue radio control type servos. Servos are versatile low cost control actuators which are ideal for animating layouts.

SV1 makes it easy to control a servo in a number of different ways:

Train passing a Track Sensor moves the servo to defined positions

Mimic switch moves the servo to defined positions.

DCC Controller in loco mode - controls servo using the speed control.

DCC Controller in accessory mode - moves the servo to defined positions

The Servo Controller incorporates controller, decoder and power supply circuit and can be powered directly from 12-16V smooth DC or from the standard DCC track supply. The small SV1 has a 3 pin Servo connector to enable a standard servo to be plugged in, plus screw terminals to connect to DC or DCC power, Track Sensor and Mimic Switch.

Contents

1 x SV1 Servo Controller

Instructions
