Uhlenbrock UH64300 DAISY II-DCC Digital Set

Uhlenbrock DAISY II-DCC Digital Set.

The DAISY II digital set is a digital starter system for the ambitious model railroader. It consists of a DAISY II hand controller and a DCC center, which are connected to each other via a LocoNet cable. It masters all functions that are desirable for comfortable model railway operation.

The digital center is the heart of the DAISY II digital set. All commands are coordinated in the control center and further processed according to their importance. It generates the DCC track signal and provides the LocoNet connection to the hand controller.

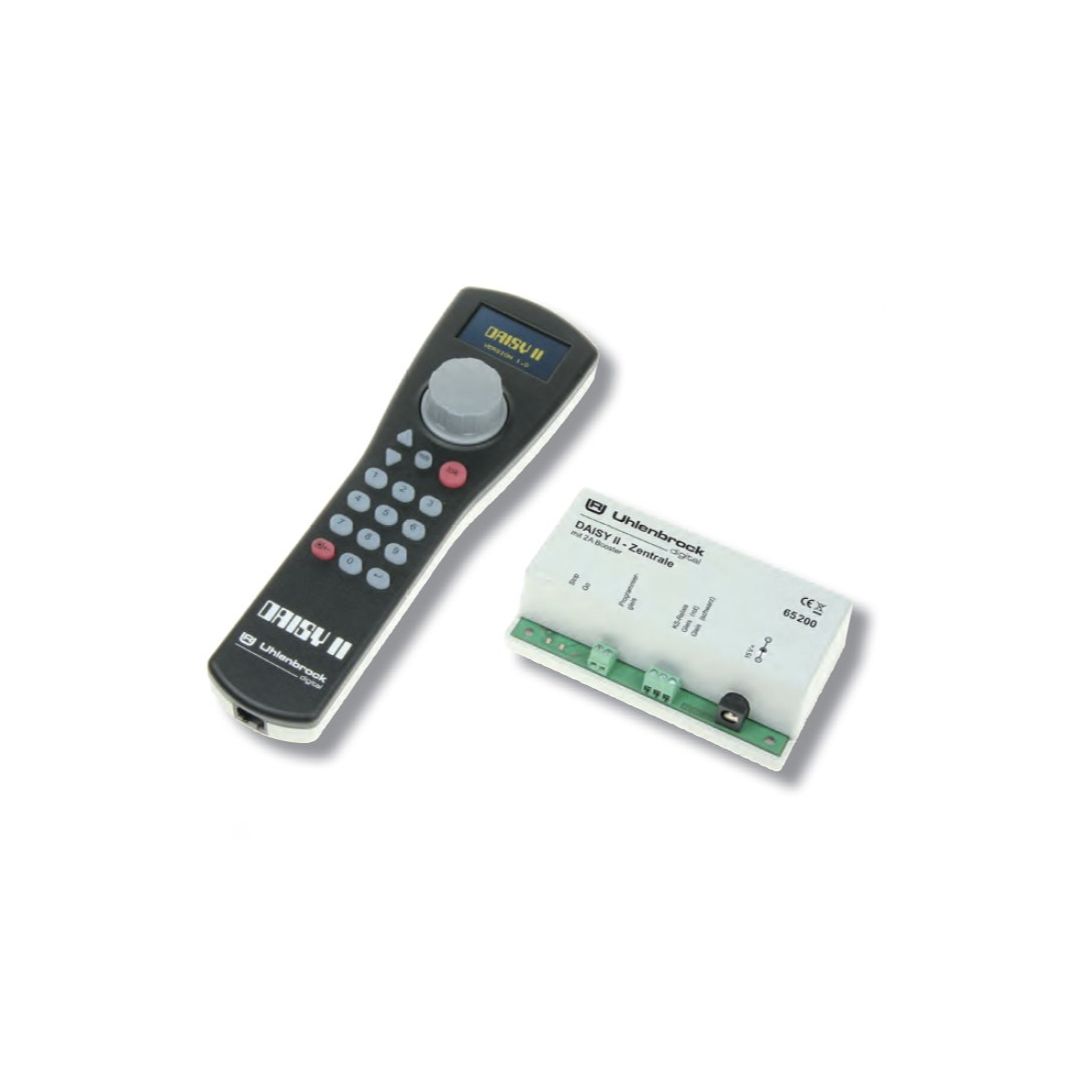

Item No. 64300 DAISY II digital set: DAISY II control panel, DAISY II hand controller, power pack, 3 m coiled cable, operating instructions

Characteristics

20 locomotives can be controlled simultaneously

9999 locomotive addresses

DCC data format with 14, 28 and 128 speed steps

Can be selected individually for each locomotive address

Up to 24 special locomotive functions can be switched per locomotive

Up to 2000 solenoid items can be switched in DCC data format

Route memory for 16 routes.

These routes can be any with a maximum of 10 steps

Switch solenoid address between 1 and 2048

Max. Output Current: 2A

Programming track output for DCC decoder

LNCV programming for LocoNet components

Output for a reverse loop relay 61080 for automatic Control of a reversing loop

LocoNet-T connection for all common LocoNet devices

LocoNet B connection for external LN boosters such as Power 4 or Power 8

With RailCom® CutOut in the DCC signal, eg for the automation system MARCo

Dispatch mode for the FRED hand controller

Updateable via USB LocoNet interface 63120 expandability

You can connect up to 20 handheld controllers to the DAISY command station. You only need the 5-way LocoNet distributor 62250 for this. You can also connect all other LocoNet devices directly.

These include, among others:

The computer interface 63120

The 8-way feedback device 63320

The track control panel TrackControl

The block station and staging yard control 68720

The Booster Power 4 63240

Of course you can also use an Intellibox later.
