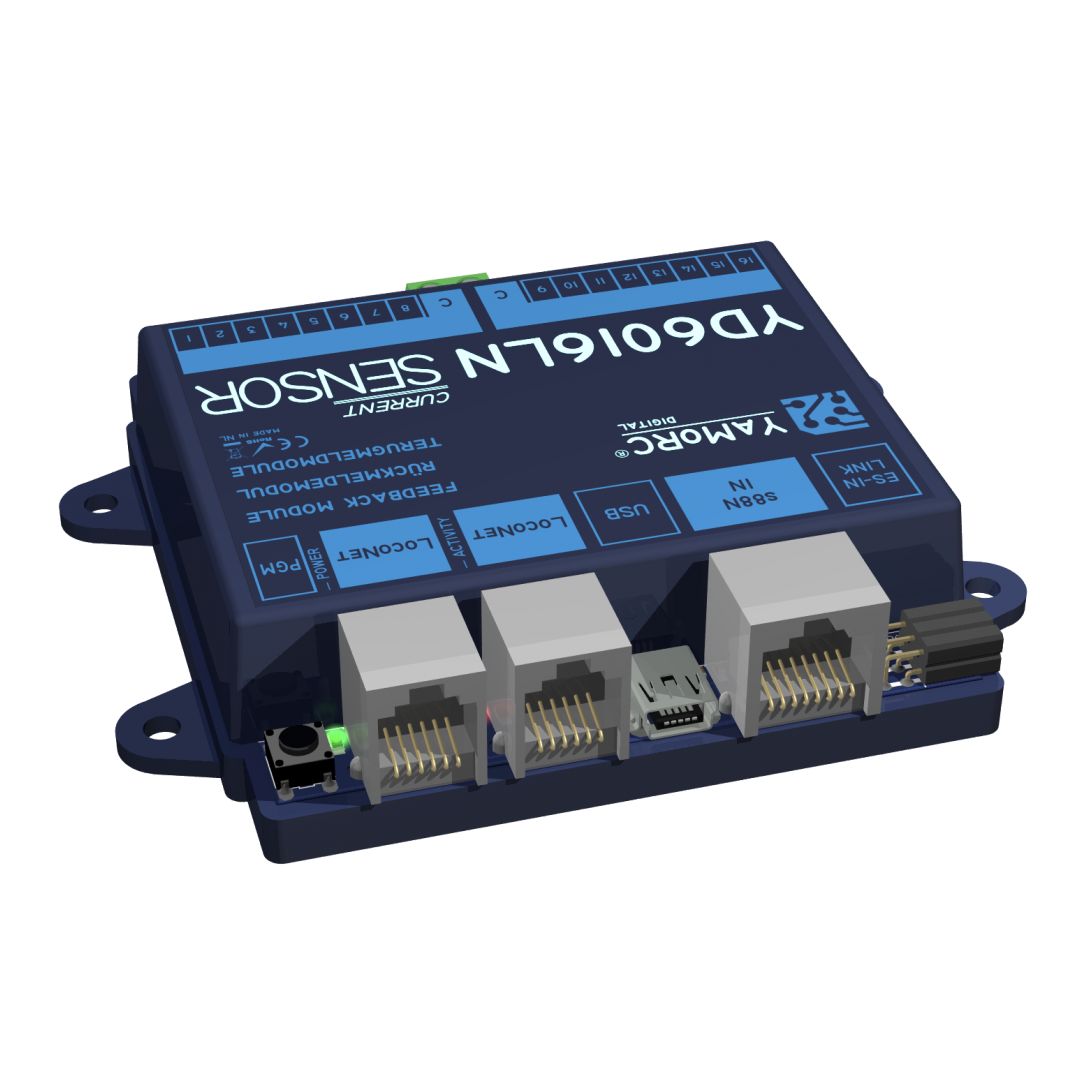

YaMoRC YD6016LN-CS Current Sensor

YaMoRC YD6016LN-CS Feedback module with Loconet.

Our standard current-sensing feedback module with LocoNet Interface

It presents:

16 current-sensing detectors, arranged in two independent blocks of 8, each with their own Common

2 Amp continuous current per detector, 8 Amps in total combined over the 16 detectors on the whole module

5 Amp short duration overload (100ms) capable per detector.

1mA current sensitivity

Capacitive input filter on every input, to suppress noise on long cables and track-sections

Configurable on- and off-delay setting for each input for optimal de-bouncing in case of non optimal wheel-track contact

Every input individually configurable for various actions like feedback, turnout toggle, turnout throw, turnout close

Every input individually configurable for feedback- or turnout-address

ES-IN-Link for direct connection of up to 5 additional YD6016ES modules (effectively creating a 96 input LocoNet module)

ES-IN-Link connection to other ES-Link enabled modules for module-configuration

ES-IN-Link connection to YD9101 for web-based configuration

USB connection with one Virtual COM ports for the YD.Command protocol

Firmware updatable over USB

Power supply directly from LocoNet-T or -B ( or USB for easy configuration and updating on a PC )
