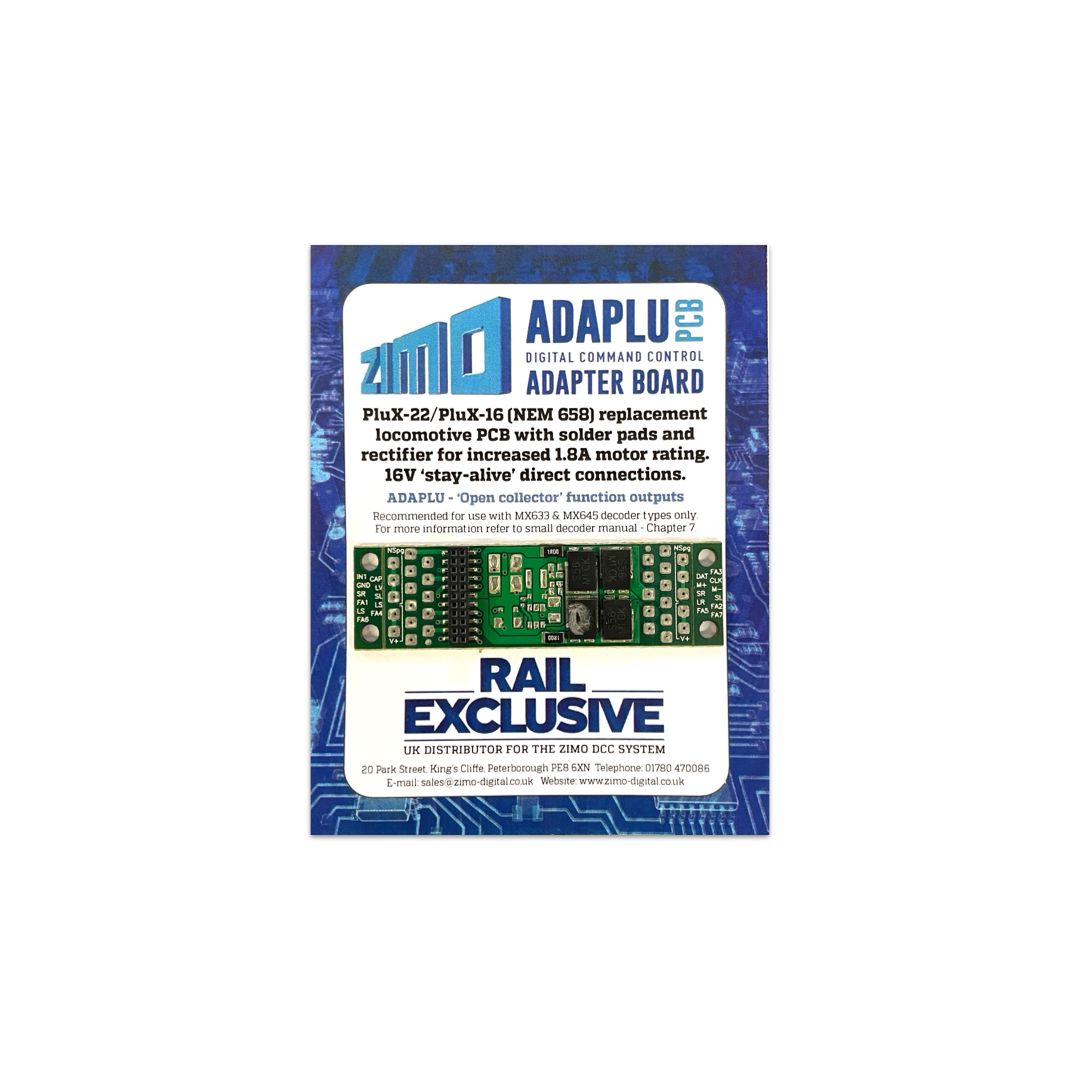

Zimo ADAPLU Plux22 / Plux 16 Adaptor Board

Adapter board for PluX-22 decoders; the decoder is plugged into the socket connector of the adapter board. Via large solder pads, the wiring inside the loco is very comfortable, whereby common connections (positive lines) for a variety of usages are realizes multiple times. The adapter board ADAPLU is equipped with a rectifier which relieves the decoder's rectifier and so produces less lost heat and performs better.

The adapter boards ADAPLU, ADAPLU15 and ADAPLU50 can be used together with all PluX decoders from the ZIMO programme which are equipped with a 16 V energy storage connection at the PluX interface (e.g. MS450P22, MS450P16, MS480P16, MN330P22, MN300P16).

ATTENTION: The ADAPLU must NOT be used with PluX decoders that do not have a 16 V energy storage connection (such as MX623P12, MX630P16 and MX648P16) !!!
